| Specification | F | FL | S | R | D | Overall Length | H |
| MGR2.0-R0.1-6L | 1.8 | 6 | 0.3 | 0.1 | D4 | 40 | 3.7 |
| MGR3.0-R0.1-10L | 2.7 | 10 | 0.3 | 0.1 | D4 | 50 | 3.7 |
| MGR4.0-R0.1-15L | 3.7 | 15 | 0.7 | 0.1 | D4 | 50 | 3.7 |
| MGR5.0-R0.2-20L | 4.7 | 20 | 1.2 | 0.2 | D5 | 50 | 4.7 |
| MGR6.0-R0.2-20L | 5.7 | 20 | 1.2 | 0.2 | D6 | 50 | 5.7 |
| MGR7.0-R0.2-25L | 6.5 | 25 | 1.5 | 0.2 | D7 | 50 | 6.7 |
| MGR8.0-R0.2-30L | 7.5 | 30 | 1.5 | 0.2 | D8 | 60 | 7.6 |

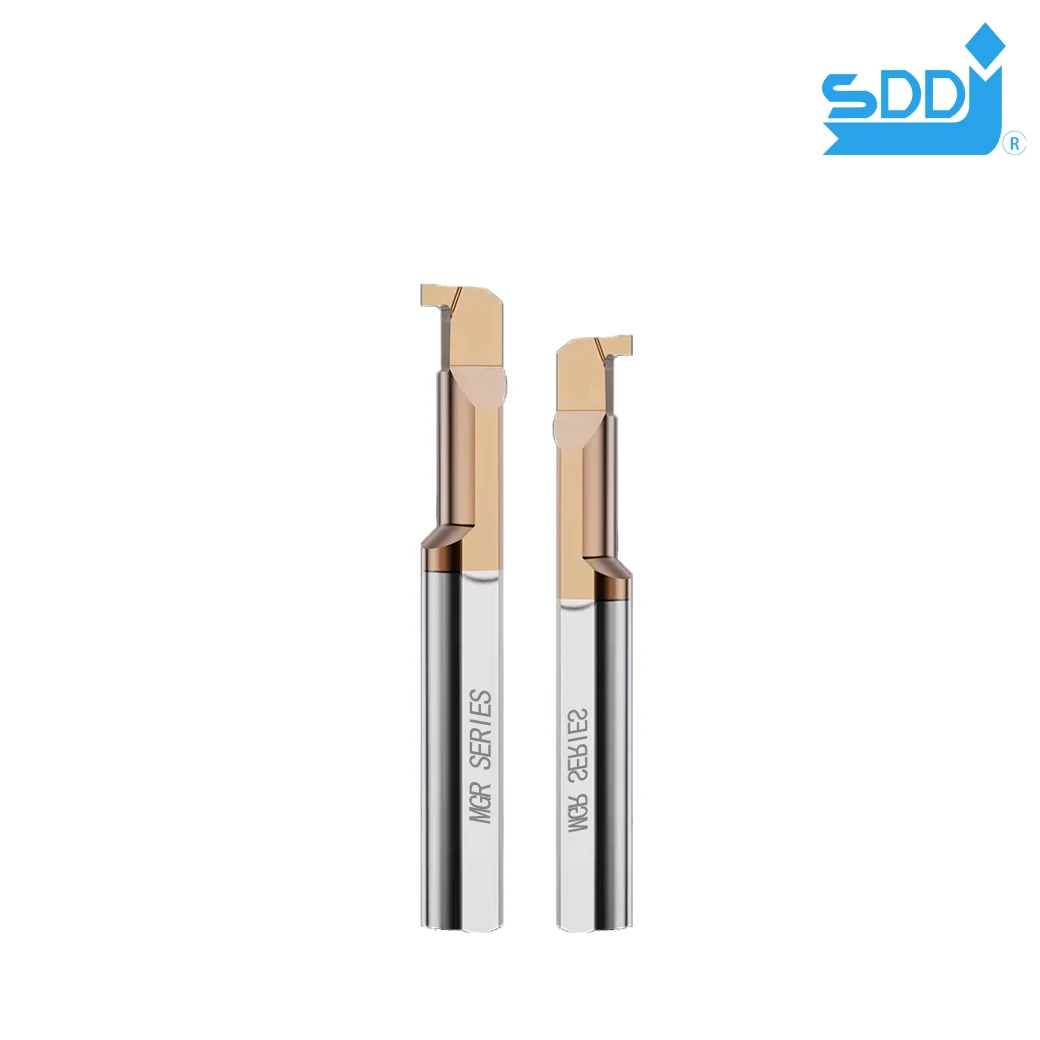

CARBIDE BORING TOOL-MGR SERIES
