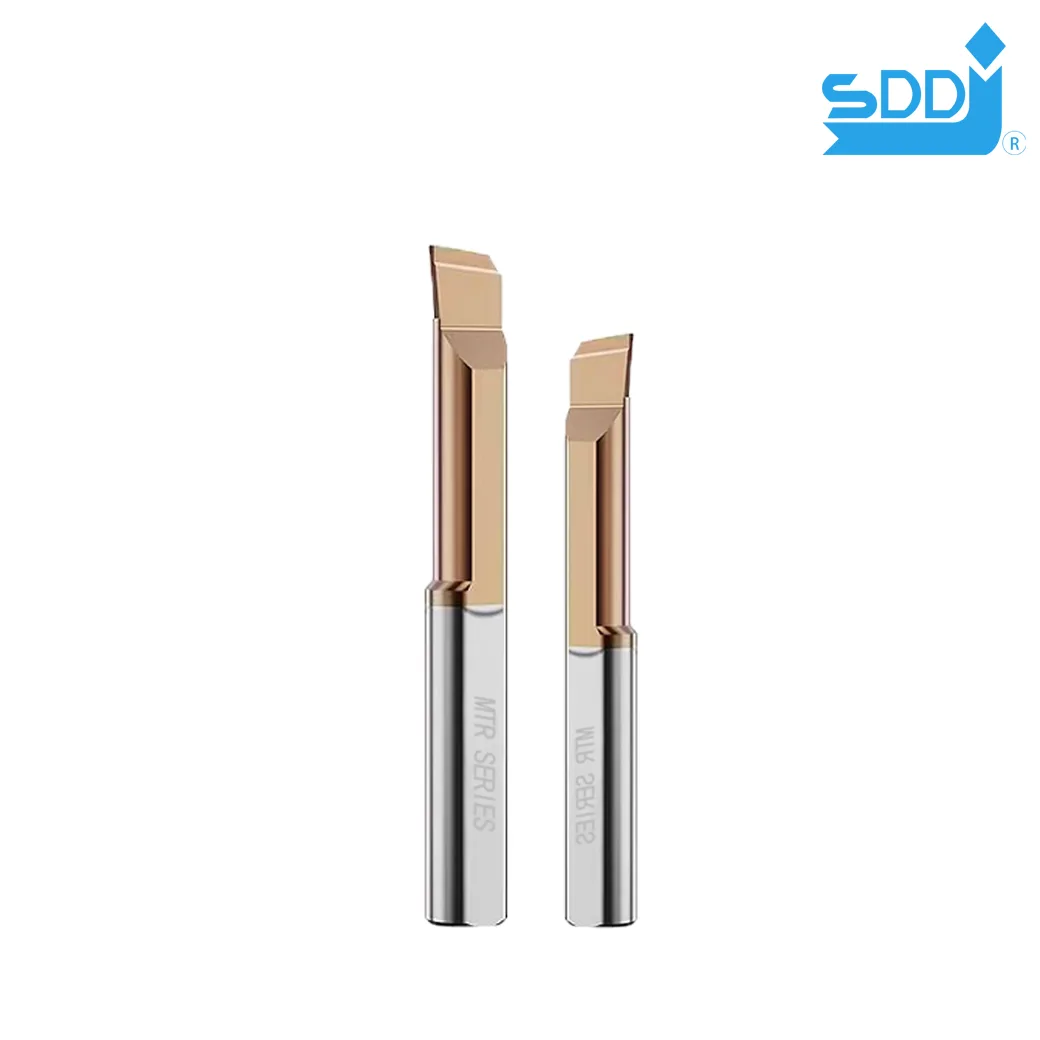

CARBIDE BORING TOOL-MTR SERIES

CARBIDE BORING TOOL-MNR SERIES

CARBIDE BORING TOOL-MTR SERIES

Category
Specification F FL S R D Overall Length H
MTR1.0-R0.05-4L 0.85 4 0.15 0.05 D4 40 3.7
MTR1.0-R0.1-4L 0.1
MTR1.5-R0.05-5L 1.3 5 0.2 0.05 D4 40 3.7
MTR1.5-R0.1-5L 0.1
MTR2.0-R0.05-6L 1.8 6 0.25 0.05 D4 40 3.7
MTR2.0-R0.1-6L 0.1
MTR2.5-R0.05-7L 2.3 7 0.3 0.05 D4 40 3.7
MTR2.5-R0.1-7L 0.1
MTR3.0-R0.05-6L 2.7 6 0.3 0.05 D4 50 3.7
MTR3.0-R0.1-6L 0.1
MTR3.0-R0.2-6L 0.2
MTR3.0-R0.05-10L 2.7 10 0.3 0.05 D4 50 3.7
MTR3.0-R0.1-10L 0.1
MTR3.0-R0.2-10L 0.2
MTR3.5-R0.1-12L 3.3 12 0.3 0.1 D4 50 3.7
MTR3.5-R0.2-12L 0.2
MTR4.0-R0.05-8L 3.7 8 0.4 0.05 D4 50 3.7
MTR4.0-R0.1-8L 0.1
MTR4.0-R0.2-8L 0.2
MTR4.0-R0.05-15L 3.7 15 0.4 0.05 D4 50 3.7
MTR4.0-R0.1-15L 0.1
MTR4.0-R0.2-15L 0.2
MTR5.0-R0.1-12L 4.7 12 0.5 0.1 D5 50 4.7
MTR5.0-R0.2-12L 0.2
MTR5.0-R0.1-20L 4.7 20 0.5 0.1 D5 50 4.7
MTR5.0-R0.2-20L 0.2
MTR6.0-R0.1-12L 4.7 12 0.5 0.1 D6 50 5.7
MTR6.0-R0.2-12L 0.2
MTR6.0-R0.1-20L 5.7 20 0.5 0.1 D6 50 5.7
MTR6.0-R0.2-20L 0.2
MTR6.0-R0.4-20L 0.4
MTR7.0-R0.2-25L 6.5 25 0.5 0.2 D7 50 6.7
MTR8.0-R0.2-30L 7.5 30 0.5 0.2 D8 60 7.6
MTR8.0-R0.4-30L 0.4
