| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGW050202 | 5.56 | 2.38 | 2.2 | 0.2 | 7° | |
| SCGW050204 | 5.56 | 2.38 | 2.2 | 0.4 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT050202 | 3-5° | 5.56 | 2.38 | 2.2 | 0.2 | 7° |
| SCGT050204 | 3-5° | 5.56 | 2.38 | 2.2 | 0.4 | |
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGW060202 | 6.35 | 2.38 | 2.2 | 0.2 | 7° | |
| SCGW060204 | 6.35 | 2.38 | 2.2 | 0.4 | ||
| SCGW060208 | 6.35 | 2.38 | 2.2 | 0.8 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT060202 | 3-5° | 6.35 | 2.38 | 2.2 | 0.2 | 7° |
| SCGT060204 | 3-5° | 6.35 | 2.38 | 2.2 | 0.4 | |
| SCGT060208 | 3-5° | 6.35 | 2.38 | 2.2 | 0.8 | |
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGW070202 | 7.94 | 2.38 | 3.4 | 0.2 | 7° | |
| SCGW070204 | 7.94 | 2.38 | 3.4 | 0.4 | ||
| SCGW070208 | 7.94 | 2.38 | 3.4 | 0.8 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT070202 | 3-5° | 7.94 | 2.38 | 3.4 | 0.2 | 7° |
| SCGT070204 | 3-5° | 7.94 | 2.38 | 3.4 | 0.4 | |
| SCGT070208 | 3-5° | 7.94 | 2.38 | 3.4 | 0.8 | |
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGW090302 | 9.525 | 3.18 | 4.4 | 0.2 | 7° | |
| SCGW090304 | 9.525 | 3.18 | 4.4 | 0.4 | ||
| SCGW090308 | 9.525 | 3.18 | 4.4 | 0.8 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT090302 | 3-5° | 9.525 | 3.18 | 4.4 | 0.2 | 7° |
| SCGT090304 | 3-5° | 9.525 | 3.18 | 4.4 | 0.4 | |
| SCGT090308 | 3-5° | 9.525 | 3.18 | 4.4 | 0.8 | |
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT09T302 | 9.525 | 3.97 | 4.4 | 0.2 | 7° | |
| SCGT09T304 | 9.525 | 3.97 | 4.4 | 0.4 | ||
| SCGT09T308 | 9.525 | 3.97 | 4.4 | 0.8 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGW120404 | 12.7 | 4.76 | 5.5 | 0.4 | 7° | |
| SCGW120408 | 12.7 | 4.76 | 5.5 | 0.8 | ||
| SCGW120412 | 12.7 | 4.76 | 5.5 | 1.2 | ||
| ISO Code | Dimensions | |||||
| Rake angle | Inscribed circle | Thickness | Hole Dia. | Nose radius | Angle | |
| SCGT120404 | 5-10° | 12.7 | 4.76 | 5.5 | 0.4 | 7° |
| SCGT120408 | 5-10° | 12.7 | 4.76 | 5.5 | 0.8 | |
| SCGT120412 | 5-10° | 12.7 | 4.76 | 5.5 | 1.2 | |

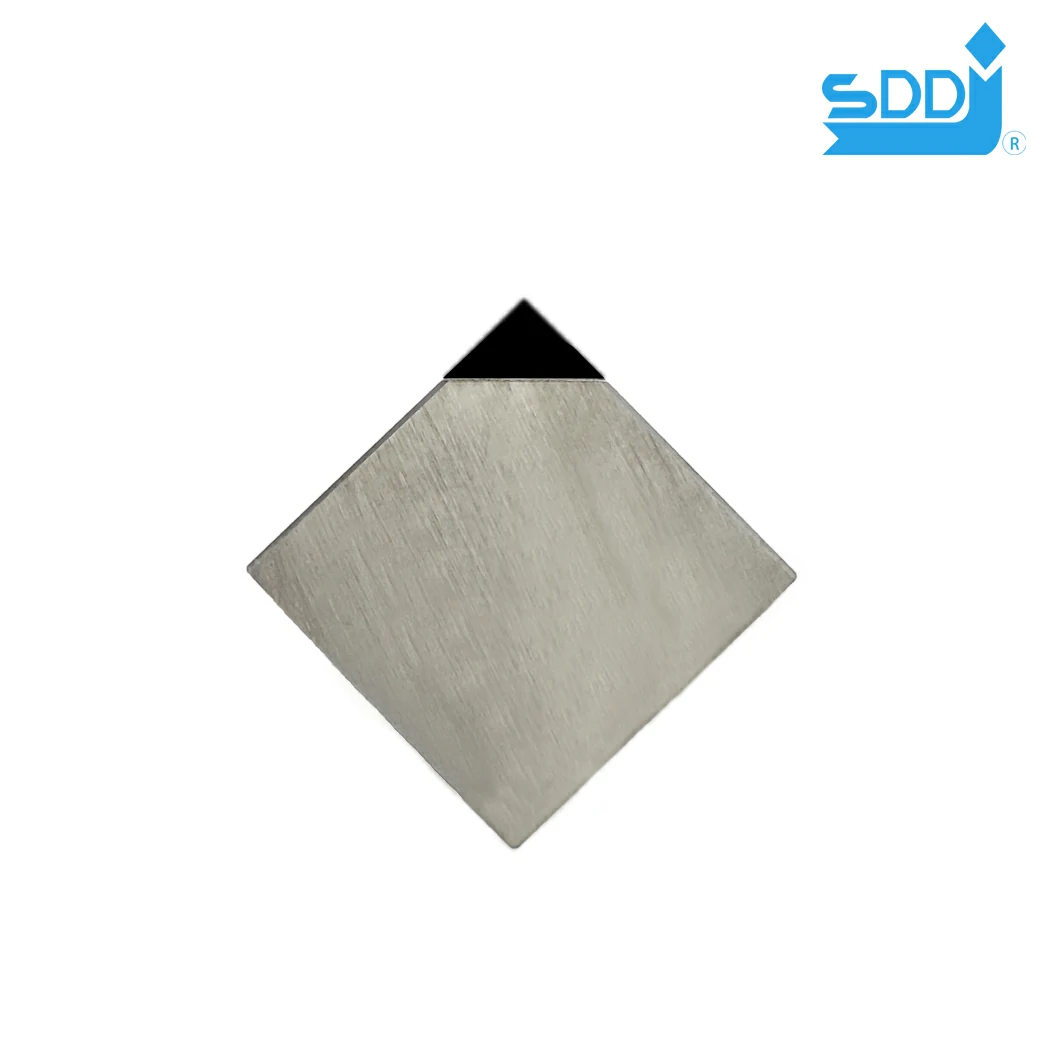

PCD INSERTS-SC SERIES 90°
PCD INSERTS-SC SERIES 90°
